RS-904AI Automatic Tape & Loose Axial lead Cutting Machine With Vibration Feeder Bowl

Name: RS904AI Automatic Tape amp Loose Axial lead Cutting Machine With Vibration Feeder Bowl
Brand: RKENS
Price: 1 USD

China RS-904AI Automatic Tape & Loose Axial lead Cutting Machine With Vibration Feeder Bowl wholesale

Brand Name : RKENS

Model Number : RS-904AI

Place of Origin : China

MOQ : 1SET

Payment Terms : T/T, Paypal,Western Union

Delivery Time : 3-5 days

Packaging Details : Carton box or Wooden case

Name : RS-904AI Automatic Tape & Loose Axial Lead Cutting Machine

Usage : Cut and Bend Axial lead

Lead diameter : 0.35-0.8mm

Power supply : 220V/110V 50HZ/60HZ

Contact Now

RS-904AI Automatic Tape & Loose Axial Lead Cutting Machine With Vibration Feeder Bowl

Usage:

Suitable for Axial taped/loose resisitor and electronic components lead cutting and forming into U or F type assembly.
Forming Type: U type (horizontal)& F (vertical). Can not be shared for one machine
Optional electric modules, consisting of electric resistor lead forming machine

Feature

1. This machine is suitable for axial tape or loose resistors and electronic components forming and cutting feet;
2. Forming and cutting feet can be finished by one time. Strong processing ability, the output can reach to 60000 components per hour;
3. Small volume, easy to hand operation can be installed in the desktop use, without being limited by the space;
4. Forming span and feet length are adjustable;
5. Using tools imported from Japan, durable;
6.U type (horizontal)& F (vertical) two models cannot be Shared. Please make clear before ordering.

Parameters:
Model::RS-904A
Voltage:220V AC60Hz/50Hz
Size:L560 x W500 x H380mm
Weight:125KG after packing
Efficiency:3000-60000pcs/H

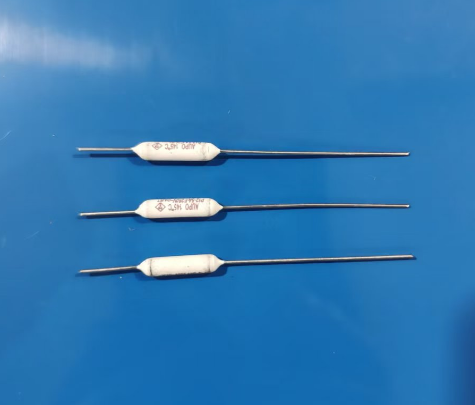

Forming size and forming samples

RS-904AI Automatic Tape & Loose Axial lead Cutting Machine With Vibration Feeder Bowl

For loose axial components, it can automaic feed components with the feeder bowl.

RS-904AI Automatic Tape & Loose Axial lead Cutting Machine With Vibration Feeder Bowl

Machine video:

RS-904AI Automatic Tape & Loose Axial lead Cutting Machine With Vibration Feeder Bowl Images
