Automatic Adhesive Grease Cartridge Silicone Liquid Potting Machine

Name: Automatic Adhesive Grease Cartridge Silicone Liquid Potting Machine
Brand: RKENS
Price: 1 USD

Brand Name : RKENS

Model Number : YS-D331-E

Place of Origin : China

MOQ : 1SET

Payment Terms : T/T, Western Union

Supply Ability : 300 SETS per month

Delivery Time : 7-10 days

Packaging Details : Wooden case

Name : Automatic Adhesive Grease Cartridge Silicone Liquid Potting Machine

Suitable Glue : Two components glue, silicone glue,UV,etc

Contact Now

Automatic Adhesive Grease Cartridge Silicone Liquid Potting Machine

Intro:

Automatic 3 axis and 4 axis adhesive doming filling machine.It can quickly dot, lines, circles and various irregular graphics on the product surface,
outer wall, vertical surface, gap, spherical surface.Precise positioning, precise control of glue, no drawing, no leaking, no dripping.

Available glue:

The machine can work for various adhesive. Like Silicon, UV glue, AB two components glue, conformal coating, epoxy resin, instant glue, EMI conducting resin, sealant, hot glue, grease, red gum , solder paste,thermal grease, solder grease, lacquer, screw fixing agent.

Applicable objects:

For dispensing various glues on Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.

Technical Parameters

Model	YS-D331E	YS-D441E	YS-D551E
Working area(X/Y/Zmm)	300x300x100	400x400x100	500x500x100
Max. Speed	500mm/sec
Resolution	0.01mm
Repeatability	+/-0.01mm
Display	5.7’ LCD
Drive mode	Micro Stepping Motor
Power	220V /110V
Working enviroment	Temperature:5-40 degrees Celsius Humidity:20-90%RH
Size(LWH)	460x450x480mm	560x550x500	660x650x550
Weight	40KG	50KG	60KG

Features

The automatic glue dispensing machine can realize 3-axis and 4-axis path dispensing, and can quickly dot, draw lines, circles and various irregular graphics on the product surface, outer wall, vertical surface, gap, and spherical surface. Precise positioning, precise glue control, no wire drawing, no glue leakage, no glue dripping.
Major functions: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
Adjustable gluing area, speed of gluing, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
Can draw dispensing path and import from computer, or edit on the touch panel. Easy operation, high precision.
Big working platform for putting several pieces of product at a time. High dispensing efficiency. Working platform can be customized according to the product size.
Suitable for kinds of fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...

We can make machines according to customers' requirments.

Automatic Adhesive Grease Cartridge Silicone Liquid Potting Machine

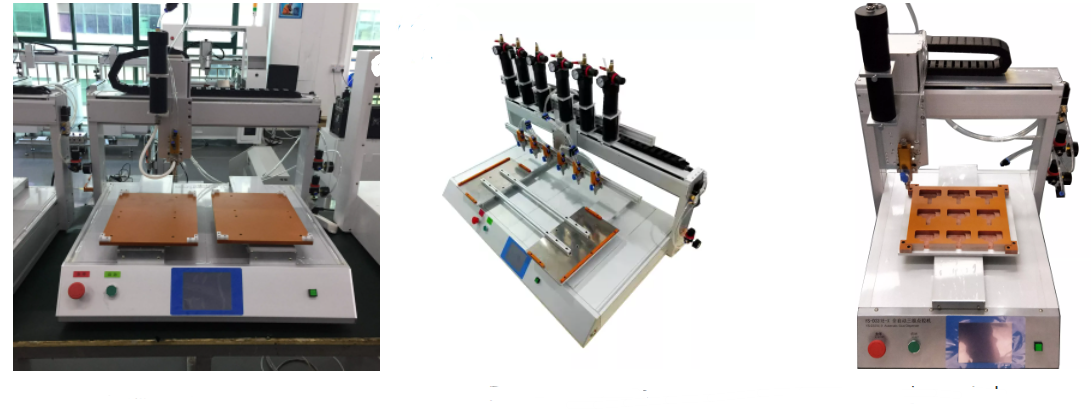

Automatic Adhesive Grease Cartridge Silicone Liquid Potting Machine Images
